Onick S75 Digital Anti-shake Patrol Instrument Application Solution

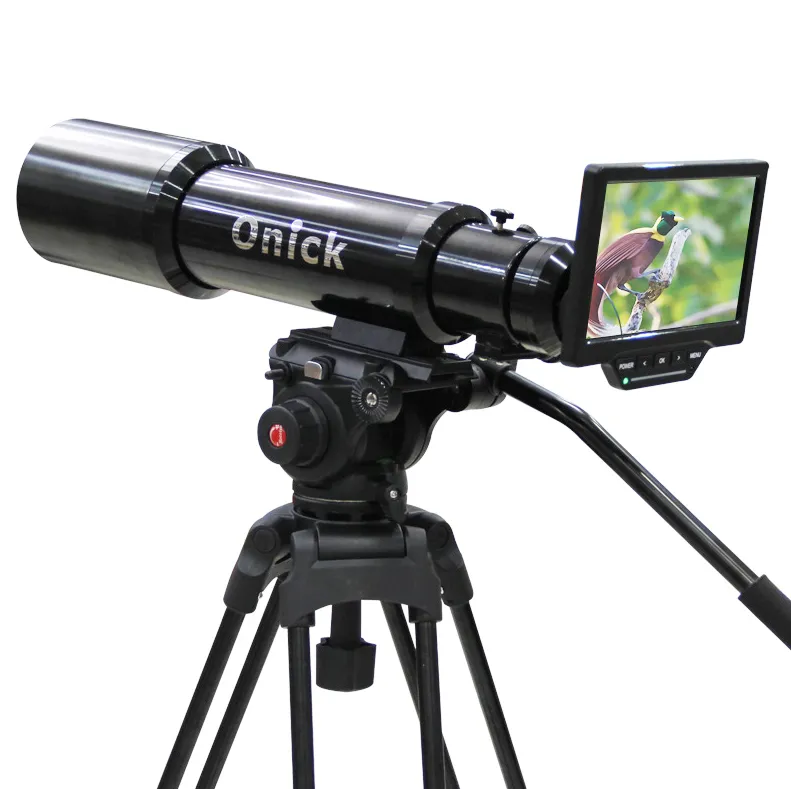

The Onick S75 digital image-stabilized patrol camera utilizes cutting-edge image sensing technology to enable long-range observation, photography, and evidence collection. It utilizes a long-range telephoto lens to observe targets, while a back-end digital imaging module processes data, achieving ultra-high-magnification optical zoom. The digital end transmits a video stream via an encrypted signal to all phones and tablets within range. A tablet or smartphone can be used as a display.
I. Product Features
It integrates photography, observation, and evidence collection functions in a single, lightweight package.
It operates on a single device, allowing multiple smart devices (phones or tablets) to simultaneously share images and videos online.
It clearly recognizes license plates from up to 800 meters away, faces from up to 1000 meters away, and activities from up to 3000 meters away.
Ultra-low dispersion optical glass effectively eliminates chromatic aberration and increases contrast. The traditionally hand-polished lens features a matte black interior to prevent stray light reflections.
The precision-machined, high-quality duralumin focus tube is perfectly integrated with the Heavy Duty 2" Crayford metal focus mount.
Equipped with a professional manual fine-tuning image stabilizer, it ensures clear, shake-free images when tracking and shooting.
25-75x optical zoom and 6x digital zoom achieve 450x magnification on the 300ppi LCD screen.
Viewing is intuitive and clear using the 7-inch professional HD large-screen monitor.
Images are transmitted over the network. With a built-in battery or external power supply, it's ready to use just by turning on the switch, requiring no additional connections.
The S75 digital image-stabilized patrol camera is widely used for inspecting power lines, communication lines, maintaining forests and oil fields, disaster prevention, reservoir and pasture management, monitoring activity sites, recording evidence, and obtaining evidence against poachers.
II. Product Specifications
Objective Lens: 80mm ED fully coated lens
Focal Length: 450mm
Magnification: Continuous zoom 25-75x
Field of View: 42 ft/1000 yds 10 ft/1000 yds
Field of View: 1.6°-0.8°
Maximum Resolution: 2688 x 1512
Image Sensor: 1/3-inch Back-Side Illuminated (BSI)
Pixel Size: 2µm x 2µm
Video Resolution: 1080p @ 30fps (Clear), 720p @ 60fps (Smooth)
Wi-Fi Output: 720x360 @ 30fps
HDMI Resolution: 720p @ 60fps
Digital Zoom: 16x
Focus: Manual
White Balance: Auto White Balance/Auto Gain
Memory Card: TF Card (8GB-64GB)
Exposure Control: AE Lock, Exposure Compensation (Adjustable in Ten Levels)
Video Recording: Yes
Video Format: AVI/VGA
Video Output: USB Mode, Wireless Mode
Frequency Range: 2.4000--2.4835GHz
Device Interface: USB, HDMI
Display Size: 7-inch
Display Resolution: 1064x600
Power Supply: 18650 rechargeable battery, 2000 mAh
Image Stabilization System: Manually controlled fine-tuning stabilizer for drop protection. Fine-tuning controls allow for 5cm panning of the image at a distance of 500 meters.
Weight: 2500g
Dimensions: 600*174*129mm
Outer Packaging: 660*240*200mm hard case
Tripod: Supported
Power Line Inspection
The Onick S75 digital image-stabilizing patrol camera can be used as a power line inspection device. It clearly distinguishes tower details, greatly reducing the workload of line selection and inspection, protecting patrolmen, and improving patrol accuracy. This allows patrolmen to focus more on patrolling rather than trekking through mountains and rivers, ensuring the smooth operation of the power grid and truly safeguarding transmission lines and national assets.
Remote Monitoring
Onick The S75 digital anti-shake patrol camera enables long-distance observation, surveillance, and evidence collection. It can be set up at any time, is easy to use, and highly practical. It comes with a tablet, but other phones or tablets can also be used as the display device. Easy to operate, it features a custom-designed hand-controlled fine-tuning image stabilizer. Whether observing or shooting, it can quickly move a target up to 500 meters away within 5 centimeters per second.
Forest and Fishery Protection
The S75 digital anti-shake patrol camera's unique Wi-Fi remote evidence collection feature is suitable for large-scale applications such as forestry and fisheries. It can be deployed anytime, anywhere, enabling remote evidence collection.

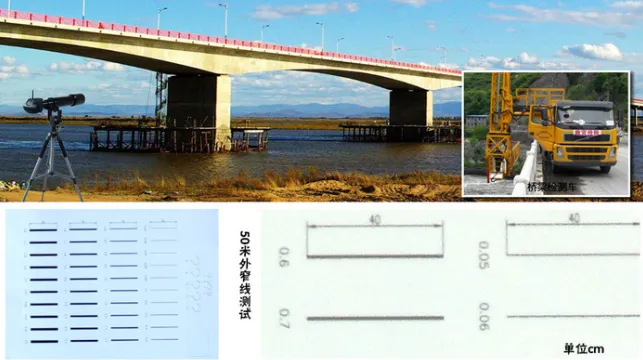

Bridge Inspection
Wi-Fi Remote Bridge Inspection System - A New Inspection Method that Supplements Traditional Inspection Methods
Military Field
Onick The S75 digital image stabilization patrol camera can clearly identify license plates from 800 meters away, faces from 1000 meters away, and activities from 3000 meters away. It can meet a wide range of long-distance monitoring and filming needs. Military applications can capture the necessary footage and intelligence without risking personnel. A single camera can simultaneously share footage and video online using multiple smart devices (phones or tablets) as screens.
