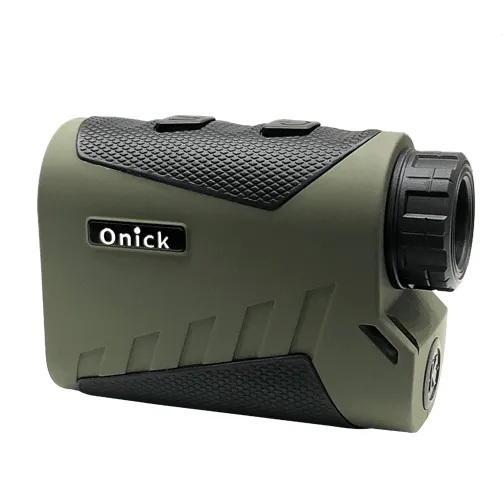

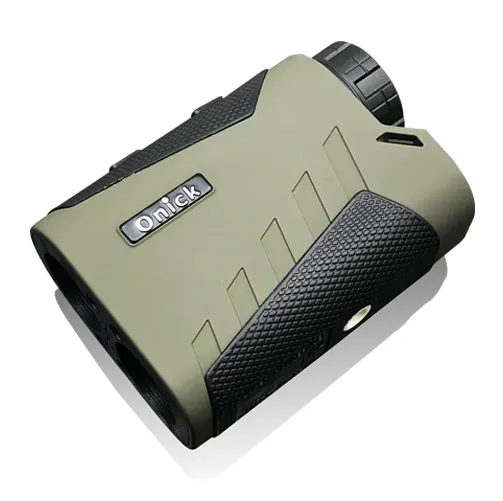

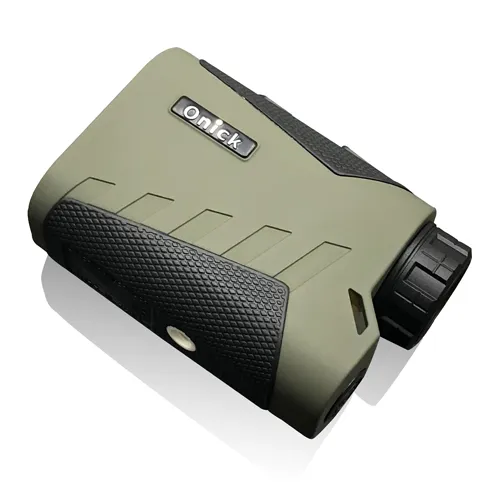

L series laser rangefinder rangefinder speed measuring instrument
The accuracy of onick L Series upgraded laser rangefinder mainly depends on the calculation accuracy of the instrument to calculate the time of laser transmission and reception. According to the technology and application used, the laser rangefinder can be divided into conventional laser rangefinder (mainly used for outdoor sports, hunting, etc.), with an accuracy of about 1 meter, mapping, land surveying, construction, engineering applications, military and other high-precision laser rangefinde
€0
Measurement Range: 4-600m、4-800m、4-1000m、4-1200m、4-1500m、4-1800m、4-2000m
Product Model: 600L、800L、1000L、1200L、1500L、1800L、2000L
Product Details
Product Details
Professional "distance measuring expert" is suitable for medium and long distance measurement, a new generation of L range finder long distance series
Onick's new generation L rangefinder long-distance series is lightweight and compact, and is ergonomic. It completely subverts the styling skills and incorporates the craftsmanship of Onick brand into the details, continues the style of fashion, compactness and light weight, and improves the comfort of use. The anti-slip rubber is equipped with precise operating buttons to further improve measurement sensitivity. The L series has strict requirements for distance measurement accuracy in its original functions, with an accuracy of up to 0.3 meters!
The phase method rangefinder is a rangefinder that modulates the laser phase and obtains the distance by measuring the phase difference of the reflected laser. Since the reflected laser phase needs to be detected, the received signal needs to have a strong intensity. Considering the safety of human eyes, telescopic systems such as pulsed laser rangefinder cannot be used, and the range is small. Because the propagation speed of ultrasonic wave in the air is greatly affected by temperature, humidity and air pressure, the measurement error is large.
Because the ultrasonic wave wavelength is long and the propagation distance is short, the general ultrasonic rangefinder measurement distance is short and the measurement accuracy is low. However, the characteristics of ultrasonic as a fan transmission is greater than that of photoelectric distance meters, and it is widely used in security protection, cable height measurement, obstacle detection and other fields.
Product features:
1. The accuracy is up to 0.3 meters, combining the functions of ordinary telescopes and laser rangefinders;
2. The laser emission power is small and safe for the human eye;
3. No cooperation goals are required, and any target can be measured;
4. Strict distance measurement, small size, light weight, easy to carry;
5. The machine is powered by CR2-3V batteries, which is very convenient to purchase and replace;
6. Application areas: electricity, industry, forestry, security, geological exploration, construction, outdoor hunting, camping and mountaineering, etc.
Application areas:
Golf, Electricity, water conservancy, communications, environment, construction, geology, police, fire, blasting, navigation, aviation, railways, counter-terrorism/military, agriculture, forestry, real estate, leisure/outdoor sports and other fields.
| Product Model | Onick 600L、800L、1000L、1200L、1500L、1800L、2000L |
| Function | Distance Measurement and Velocity Measurable |
| Measurement Range | 4-600m、4-800m、4-1000m、4-1200m、4-1500m、4-1800m、4-2000m |
| Measurement Accuracy | ±0.3m |
| Velocity Measurable Range | 0-300km |
| Ranging Display | Built-in and external LCD display |
| Magnification | 6X |
| Objective Aperture | 25mm |
| Exit Pupil Diameter | φ3.8mm |
| Operating Temperature | -10~+50ºC |
| Laser Eye Safety | YES |
| Focusing Mode | Eyepiece focusing |
| Product Size | 120*42*80mm |
| Net Weight | 200g |
| Tripod | Support |
| Battery Type | CR2-3V lithium battery |
| Packing List | Range finder, portable bag, USB charging cable, glass cleaning cloth, manual, product manual warranty card, color box |
